Hikvision Cameras

Hikvision is the world’s leading supplier of video surveillance solutions. From its inception in 2001, Hikvision has played an active role in the ever-evolving video surveillance market, devoting eight percent of its annual revenue into research and development for continued product innovation. Featuring the industry’s strongest R&D workforce, Hikvision designs, develops, and manufactures innovative standard- and high-definition cameras, including a variety of Smart IP recorders and cameras with infrared, wide dynamic range, facial detection, object counting, and intrusion detection capabilities. Easily meeting all bandwidth and storage utilization requirements, Hikvision’s Smart IP Camera Series offers unparalleled image quality and customer convenience. Additionally, Hikvision’s Smart PTZ cameras incorporate proprietary image signal processing technology and use progressive scan sensors to deliver true color representation and clear images of fast-moving objects.

DS-2CD2146G1-IS 4 MP Outdoor AcuSense Fixed Dome Camera


The Hikvision DS-2CD2146G1-IS Outdoor AcuSense Fixed Dome Camera provides high definition network output. It supports H.265+ video compression, which assures savings in bandwidth and storage.

Smart features, such as line crossing and intrustion detection are supported. False alarm reduction by human and vehile target classification based on a deep-learning algorithm is a key feature of this product line.

1/2.7" (4 MP) Progressive Scan CMOS
•2688 × 1520 Resolution @ 30 fps
•2.8 mm, 4 mm or 6 mm Fixed Lens Options
•EXIR 2.0 Range Up to 100 ft (30 m)
•H.265+, H.265, H.264+, H.264
•120dB True WDR
•MicroSD Card Slot Supports 128 GB
•IP67, IK10 Protection
•Durable Metal Housing
•12 VDC and PoE (802.3af)

8 MP Outdoor IR Varifocal Dome Camera (DS-2CD2143G0-I)


The Hikvision DS-2CD2143G0-I Outdoor IR Fixed Dome Camera provides high definition network output. It supports H.265+ video compression technology, which assures savings in bandwidth and storage.
•1/3" (4 MP) Progressive Scan CMOS
•Up to 2688 x 1520 Resolution
•2.8mm or 4mm Fixed Lens Options
•EXIR 2.0 Range Up to 100 ft (30 m)
•H.265+/H.265/H.264+/H.264
•120 dB WDR
•IP67, IK10 Protection
•Durable Metal Housing
•12 VDC ±25% (PoE 802.3af), maximum 7.5 W

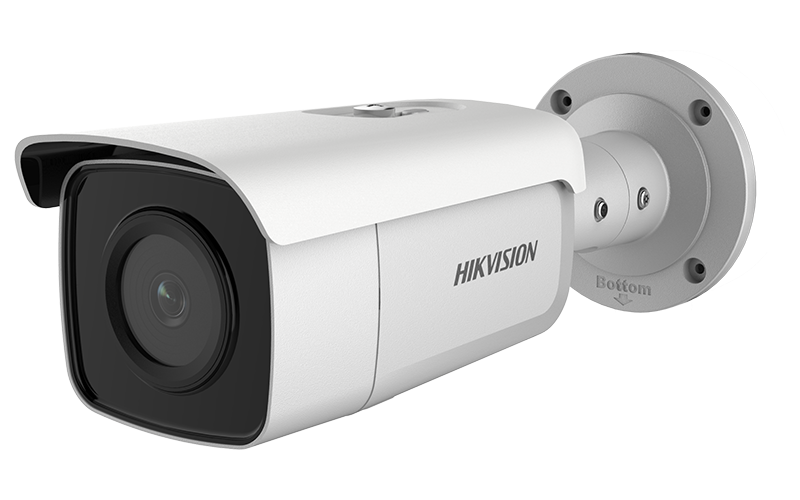

Hikvision Fixed IR Bullet Network Camera (DS-2CD2T46G1-4I)


The Hikvision DS-2CD2T46G1-4I Outdoor AcuSense Fixed Bullet Camera provides high definition network output. It supports H.265+ video compression, which
assures savings in bandwidth and storage.
•1/2.7" (4 MP) Progressive Scan CMOS
•2688 × 1520 Resolution @ 30 fps
•EXIR 2.0 Range Up to 260 ft (80 m)
•2.8mm, 4mm, or 6mm Fixed Lens options
•H.265+, H.265, H.264+, H.264
•120dB True WDR
•MicroSD Card Slot Supports 128 GB
•IP67 Protection
•Durable Metal Housing
•12 VDC and PoE (802.3at)

DS-2CD2327G1-L 2 MP ColorVu Fixed Turret Outdoor Network Camera



Hikvision’s DS-2CD2327G1-L ColorVu Outdoor Fixed Turret Network Camera features an ƒ/1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings. The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule.

•24/7 Full Time Color
•Maximum 1920 × 1080 @ 30 fps
•4 mm Fixed Lens
•H.265+, H.264+
•120 dB True WDR
•12 VDC and PoE (802.3af, Class 3)
•MicroSD/SDHC/SDXC Slot, up to 128 GB
•BLC/3D DNR/HLC/ROI
•0.0035 Lux @ (ƒ/1.0, AGC On), 0 Lux w/Light
•IP67

DS-2CD2327G1-LU 2 MP ColorVu Fixed Turret Outdoor Network Camera with Microphone



Hikvision’s DS-2CD2327G1-LU ColorVu Outdoor Fixed Turret Network Camera features an ƒ/1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings. The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule.

•24/7 Full Time Color
•Maximum 1920 × 1080 @ 30 fps
•4 mm Fixed Lens
•H.265+, H.264+
•120 dB True WDR
•Built-in Mic
•12 VDC and PoE (802.3af, Class 3)
•MicroSD/SDHC/SDXC Slot, up to 128 GB
•BLC/3D DNR/HLC/ROI
•0.0035 Lux @ (ƒ/1.0, AGC On), 0 Lux w/Light
•IP66

DS-2CD2347G1-L 4 MP ColorVu Fixed Turret Outdoor Network Camera



Hikvision’s DS-2CD2347G1-L ColorVu Outdoor Fixed Turret Camera features an ƒ/1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings. The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule.

•24/7 Full Time Color
•Maximum 2688 × 1520 @ 30 fps
•4 mm Fixed Lens
•H.265+, H.264+
•120 dB True WDR
•12 VDC and PoE (802.3af, Class 3)
•MicroSD/SDHC/SDXC Slot, up to 128 GB
•BLC/3D DNR/HLC/ROI
•0.0014 Lux @ (ƒ/1.0, AGC On), 0 Lux with Light
•IP67

DS-2CD2T27G1-L 2 MP ColorVu Fixed Bullet Outdoor Network Camera



Hikvision’s DS-2CD2T27G1-L ColorVu Fixed Bullet Outdoor Network Camera features an ƒ/1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings. The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule.

•24/7 Full Time Color
•Maximum 1920 × 1080 @ 30 fps
•4 mm or 6 mm fixed lens options
•H.265+, H.264+
•120 dB True WDR
•0.0035 Lux @ (ƒ/1.0, AGC On), 0 Lux with Light)
•12 VDC and PoE (802.3af, Class 3)
•Built-in MicroSD/SDHC/SDXC Slot, up to 128 GB
•IP67
•BLC/3D DNR/HLC/ROI

DS-2CD2T47G1-L 4 MP ColorVu Fixed Bullet Outdoor Network Camera



Hikvision’s DS-2CD2T47G1-L ColorVu Fixed Bullet Outdoor Network Camera features an ƒ/1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings. The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule.

•24/7 Full Time Color
•Maximum 2688 × 1520 @ 30 fps
•4 mm or 6 mm fixed lens options
•H.265+, H.264+
•120 dB True WDR
•0.0014 Lux @ (ƒ/1.0, AGC On), 0 Lux with Light
•12 VDC and PoE (802.3af, Class 3)
•MicroSD/SDHC/SDXC Slot, up to 128 GB
•IP67
•BLC/3D DNR/HLC/ROI

2 MP IR Fixed Dome Indoor Network Camera (DS-2CD2125G0-IMS)


Hikvision’s DS-2CD2125G0-IMS 2 MP IR Fixed Dome Indoor Network Camera provides HDMI output directly to a video display to conveniently set up a public view monitor (PVM) for theft deterrence. The camera offers 1920 x 1080 resolution at 60 fps, and comes with a 2.8 mm fixed lens.
•1/2.8" Progressive Scan CMOS
•1920 × 1080 @ 60 fps
•HDMI Output
•2.8 mm, 4 mm or 6 mm Fixed Lens options
•H.265, H.264
•120 dB WDR
•4 Behavior Analyses and Face Detection
•BLC/3D DNR/ROI/HLC
•IK10
•Built-in MicroSD/SDHC/SDXC Slot, up to 128 GB
•3-Axis Adjustment
•98 ft (30 m) IR Range
•Powered by DarkFighter ™

8 MP IR Fixed Dome Indoor Network Camera (DS-2CD2185G0-IMS)


Hikvision’s DS-2CD2185G0-IMS 8 MP IR Fixed Dome Indoor Network Camera provides HDMI output directly to a video display to conveniently set up a public view monitor (PVM) for theft deterrence. The camera offers 2840 x 2160 resolution at 20 fps, and comes with a 2.8 mm fixed lens.
● 1/2.5" Progressive Scan CMOS
● 3840 × 2160 @ 20 fps
● 2.8 mm, 4 mm or 6 mm Fixed Lens Options
● HDMI Output
● H.265, H.264
● 120 dB WDR
● 4 Behavior Analyses and Face Detection
● BLC/3D DNR/ROI/HLC
● IK10
● Built-in MicroSD/SDHC/SDXC Slot, up to 128 GB
● 3-Axis Adjustment
● 98 ft (30 m) IR Range

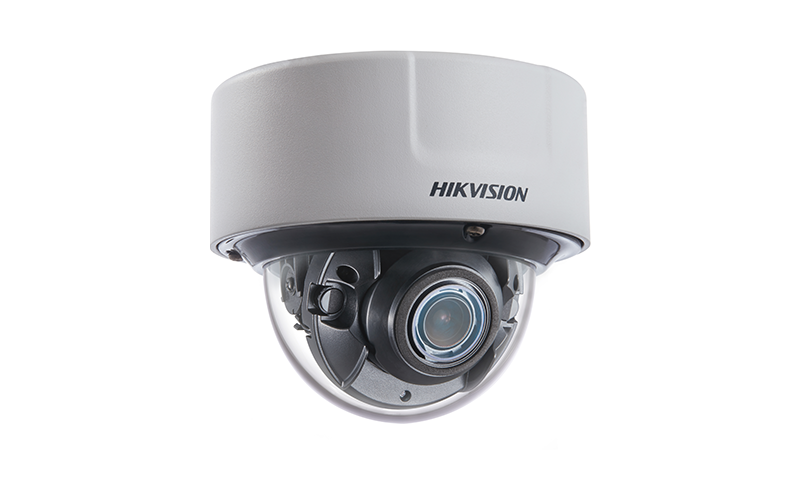

8 MP Indoor Varifocal Network Dome Camera 8 to 32 mm (DS-2CD7185G0-IZS8)


The Hikvision DS-2CD7185G0-IZS DeepinView Indoor Varifocal Network Dome Camera includes deep learning technology for human, vehicle, and face detection. It supports H.265+ video compression, which assures savings in bandwidth and storage.
•1/1.8" (8 MP) Progressive Scan CMOS
•Up to 3840 x 2160 Resolution @ 30 fps
•Human, Vehicle, and Face Detection
•EXIR 2.0 with up to 100 ft (30 m) or 165 ft (50 m) IR Range
•8 to 32 mm Motorized Varifocal Lens
•H.265+, H.265, H.264+, H.264
•120dB WDR
•Alarm/Audio Input/Output
•12 VDC Accessory Output
•MicroSD Card Slot Supports 256 GB
•IK10 Protection
•Dome has Anti-Reflective Coating
•12 VDC and PoE (802.3af)

8 MP Indoor Varifocal Network Dome Camera 8 to 32mm (DS-2CD7585G0-IZHS8)


The Hikvision DS-2CD7585G0-IZHS8 DeepinView Outdoor Varifocal DomeNetwork Camera includes deep learning technology for human, vehicle, and face detection. It supports H.265+ video compression, which assures savings in bandwidth and storage.
•1/1.8" (8 MP) Progressive Scan CMOS
•3840 x 2160 Resolution @ 30 fps
•Human, Vehicle, and Face Detection
•EXIR 2.0 Range up to 100 ft (30 m) or 165 ft (50 m)
•8 to 32 mm Motorized Varifocal Lens Options
•H.265+, H.265, H.264+, H.264
•5 Defined Streams and 5 Custom Streams
•120dB WDR
•Alarm Input/Output
•MicroSD Card Slot Supports 256 GB
•Convenient Integrated Conduit Base
•Anti-Fog Coating Inside of Lens Cover
•IP67, IK10 Protection
•12 VDC and PoE (802.3af)

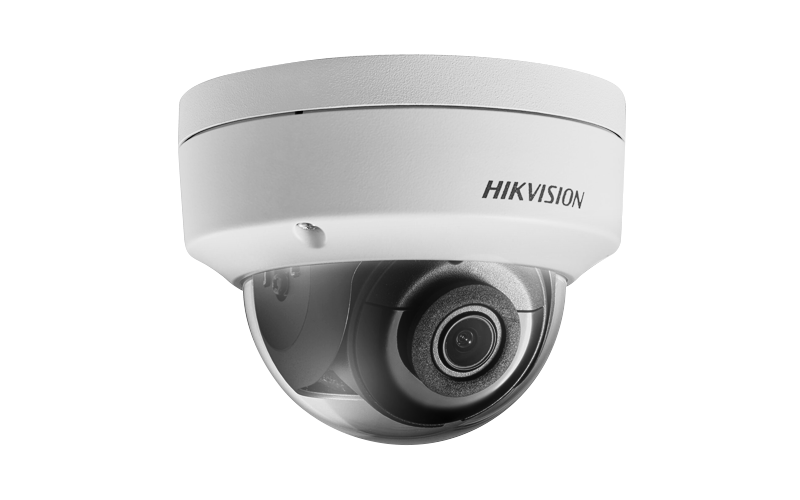

6 MP Outdoor IR Fixed Network Dome Camera (DS-2CD2165G0-I)


The Hikvision DS-2CD2165G0-I(S) Outdoor IR Fixed Network Dome Camera provides high definition output. It supports H.265+ video compression, which assures savings in bandwidth and storage.
•1/2.4" (6 MP) Progressive Scan CMOS
•Up to 3072 x 2048 Resolution @ 20 fps
•Powered by DarkFighter ™
•Up to 100 ft (30 m) IR Range
•2.8 mm, 4 mm or 6 mm Lens Options
•H.265+, H.265, H.264+, H.264
•120 dB True WDR
•MicroSD Card Slot Supports 128 GB
•IP67, IK10 Protection
•12 VDC and PoE (802.3af)

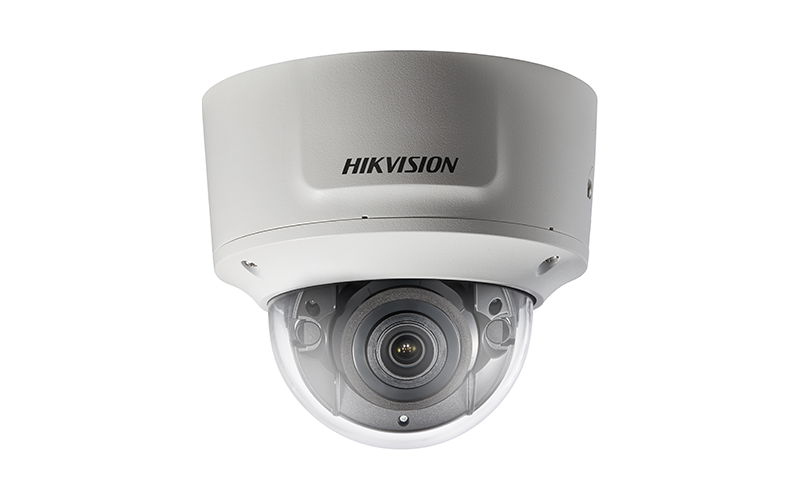

8 MP Outdoor IR Varifocal Dome Camera (DS-2CD2785G0-IZS)


The Hikvision DS-2CD2785G0-IZS Outdoor IR Varifocal Dome Camera provides high definition network output. It supports H.265+ video compression, which assures savings in bandwidth and storage.
•1/2" (8 MP) Progressive Scan CMOS
•Up to 3840 x 2160 Resolution @ 20 fps
•Darkfighter Technology
•Up to 100 ft (30 m) EXIR 2.0 Range
•2.8 to 12 mm Motorized Varifocal Lens
•H.265+, H.265, H.264+, H.264
•120dB True WDR
•MicroSD Card Slot Supports 128 GB
•IP67, IK10 Protection
•12 VDC and PoE (802.3af)
